Breeze::OS Kodiak Overview

Breeze::OS Kodiak©® is our Linux/BSD distribution for x86 and amd64 based systems, see gallery.
The operating system is either Linux or BSD based.

The File System

The file systems used in Breeze::OS©® are the file system ZFS, EXT4, and ReiserFS. Access to files is administered by the built-in search-engine. A newly added search partition is divided into the following sections:

Ferret  Where downloaded files are indexed, and stored when specified.
Config  Where all system configuration files are stored.
System  Where all systems files are stored.
Share Where all files for packages, CVS repositories, common application files, etc. are stored, and indexed.
User  Where all user files are indexed, and stored.

The future version of Breeze::OS Kodiak©® will include a completely new file system (Breeze::OS Kodiak©® path-spec file-system, TFS [ Patent Pending ]), which relies on a single-level inode storage structure with no folders, and unique keys pointing directly to files. The filesystem is made-up of three distinct sections: vertex, index, and inode.

What used to be folders are seen as vertices in a graph; since they are simply pointers to a location. Mount points can be mounted hidden. i.e. only a guard application can access files under the mount point; and every other applications must issue a request, using the SALT protocol. Indices are keys used for searches.

The new file-system, being path-spec based, will allow access to files, through the same path-spec search functionality used by our search-engine. The path-spec formalism allows boolean searches on keywords making the file-system path of a given file. For example, searching for files with the path-spec criteria:

 /sales & ( /car  | /truck )

will return all files that were saved with the keyword sales in their path specification, along with either car ortruck.

The first version of the Breeze::OS Kodiak file system (TFS) will be based on the BSD-FFS file-system.  Directory scanning becomes a simple search on path-spec keys, since there are no longer any folders to be seen. File retrieval is also performed as a search request. In the second version of TFS©®, database features will be added, using its path-spec capabilities; which will allow the retrieval of database rows, that are linked together on-the-fly, and returned to the calling application. The primary and secondary keys will be used as path-spec keys in the file system.

User Interface

The user is given three ways to interact with the system -- a shell, asearch-dialog, abrowser, and a Launcher.
The graphical user interface is anchored on the Thin::Window, the Search-Dialog, and the Launcher, and uses the PI-Box window manager. The UI specification file of the Launcher is here.
The UI specification file of the Packager is here.

Messages Of The Day

Breeze::OS MOTD(s)©® allow you to display company or deparmental info pages to your users. The security manager responsible for content management is the one responsible for managing and updating MOTD(s), The Breeze::OS Kodiak itself, has by default, system and user interface information as MOTD(s). These system MOTD(s) can be replaced by the security manager.


Breeze::OS Reminder(s)©® are messages that temporarily appear on your screen; informing you of problems with the system, possible intrusions, clues on how to do things, arrival of priority email or other types of message, etc.. Only basic system and miscellaneous reminders can be turned-off. High-priority reminders cannot be turned-off.

Breeze::OS Reminder©® system provides a simple way for users to exchange messages akin to visual texting or email, (textingwas in Unix systems with the commands mesg,write, and talk.)

TheNLP engine is used to read emails and reminders; then the content extracted is used to collate a series of animations either in Flash or png/jpg images (Picto language©®); which are then displayed as reminders with an associated link to the full-text of the message [ Patent Pending ], instead of a rich-text version of the reminder text -- in the base version of our OS. The photo of the sender, if available, fades-in at the end of the reminder being displayed. The base version of our OS may use keywords from the subject line, etc., to do the same as the NLP engine does.

The reminder XML schema will be embedded, or linked into a problem report schema, to provide problem reporting and resolution support to Breeze::OS Kodiakoperating systems.

Indexing & Searches

TheBreeze::OS Kodiak©® indexing engine uses a /etc/fstab- like file/etc/ifstab. It uses the afore-mentioned configuration file, whenever an indexing of the entire system is desired. The configuration file specifies all the paths that are to be indexed, who the owners of these paths are, and how these paths are supposed to be indexed, (what type of files should be indexed, which ones should be ignored, and if inflating zip/gzip archives should be done before indexing).

When saving a file, the system automatically indexes the newly saved file, and may do a content analysis, with the NLP engine to try to understand the content of the file. Content search is made possible, because of that analysis. See some preliminary results with the following files.

Breeze::OS Kodiak©® provides several ways of retrieving files:

  • the first is by trigerring a keyword search, as in all search-engines.
  • the second way is to trigger a content search, using a set of keywords.
  • the third is to retrieve file(s) by specifying a  file name or file type.
  • the fourth is to retrieve file(s) by specifying an actual path specification.
    The search-engine sees the path specification, (path-spec searches), as a slash-separated set of keywords, e.g. /bin/search.

Remote Connections

Breeze::OS Kodiak©®is straightforward in its ability to allow remote connections. The system relies and is anchored on a search-engine mimicking an Internet search-engine accepting search queries, and protects these connections with our SALT protocol©®.

Connecting to your Home Computer

You can turn-on remote connections by changing your remote connection preferences with the Connections manager. In order to be able to establish a remote connection, you simply log into another machine, which could be your laptop, also running Breeze::OS Kodiak©®; you then access the login UI-page to access your home computer through  your home computer'sBreeze::OS Kodiak address and port number 8012©®. The connection is established, as long as your home computer's host and domain name can be resolved (dynamic DNS service), as for a real internet website. You then simply issues search request for files as if you were working on your home computer.

Connecting to Other Computers

Connecting to other systems from your machine is accomplished as above; but you must have an account on the machine you wish to access. The security manager of the remote machine must have provided you with an account with password and optional pass-phrase. You must then supply that information through the loginUI-page to access the remote machine.

Thin::Client©® Systems

This remote connection capability is the basis for future Thin::Client©® implementations. Thin::Client©®features will be offered with the server version. Users will be able to connect to a server, acting as a central repository of indexed and content-analyzed files, through a thin client terminal; by simply accessing the Breeze::OS Kodiak©® port 8012. The Thin::Client©® machine connects to the repository at boot time, using pre-configured remote connection settings.

The hardware requirements for such a Thin::Client©®server, are obvioulsy more than for the desktop version. The preferred platforms will be, either an Intel Pentium-4, equivalent Athlon, or a 64-bit server, with at least 1G of memory; and the disk space required to store hundreds of gigabytes of files. To allow Thin::Client©® terminals to run applications on the server itself, a faster or multi-processor server will be required, preferably a multi-processor server.

Tsert::Ferret©® willl allow users, whose companies have such a server running, to schedule a daily ferreting run (information retrieval task) on the repository. Tsert::Ferret©®  will then produce a content analysis report which contains paragraphs (blurbs) of text, extracted from the returned files, which seem to talk about what the user specified in their ferreting query.

Another future way to remotely connect is through the Tsert::Collab©® component. Tsert::Collab gives the user the ability to setup a collaboration session by sharing a session-id with other users. Once a connection is established with another user, you can then collaborate on an HTML page displayed in an HTML editing window. Out-of-Band messages in the Tsert::Collab©® component arrive as Breeze::OS reminders.

Components Manager

The component manager is used to configure your desktop according to the type of applications you wish to use. Every type of application is listed, and the user selects  their application of choice, for each type of component (e.g. office-suite, word-processor, email-client, instant-messenger, personal information manager, music player, etc.) The applications selected in the components manager are displayed in the toolbar, found both in the launcher and the Breeze::OS UI pages.


The security provided by Breeze::OS Kodiak©® is built-in, by the simple fact that most, if not all access to files is controlled and compartmentalized by the search-engine. Users including the root user is not allowed to browse through folders or to look at the files of other users (incomplete without the Reiser filesystem plugin.)

Remote connections are protected by the SALT©® and SSL protocols. The Karakul©®, Kodiak©®,and Katmai©® BSD versions of the Breeze::OS Kodiak©® operating system will include our Breeze::OS Salt protocol©® at the level of the IP stack to allow secure networking without the need of a firewall (as long as, only salted ports can be opened.) It is the salt-settingthat is exchanged securely among peers in a private network, allowing each peer to match a given key. The matching may be done at the level of the IP,TCP, or HTTP protocol level. You will be able to make your network both public and private; because the Breeze::OS Salt protocol©® allows the use of a given number of reserved algorithms.

Access to other files, (system, package or ferreted files), is allowed only if the user making the request has access to the specified files. Content information, see NLP engine.

Style-Sheets & Templates

Breeze::OS Kodiak©®gives the user the freedom to provide his/her own UI pages, as long as, places are kept for copyright, trademark, launcher, and logos. This capability is provided by allowing the user to specify XSL(T) style sheets or HTML &CSS  templates.Breeze::OS Kodiak©®  uses these style sheets or templates to generate User-Interface (UI), Tsert::Packager, Tsert::Archiver, or Tsert::Ferret HTML pages.

This capability of dynamically generating HTML pages will be included in the Breeze::OS script language, found in our integrated testing environment (ITE).

Future Enhancements

XML-Based System Configuration Files.

Subsequent releases of our operating system will use XML, as the document format for all system configuration files, e.g. fstab. All configuration files, such as the files found under the /etc folder will be translated into our XML DTD, for system files.

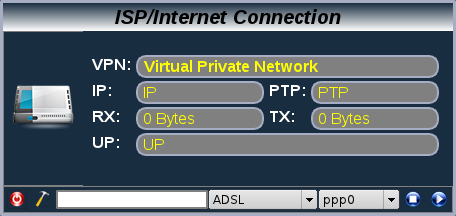

Image Gallery

pix pix pix pix pix pix

Desktop Preview

The Breeze::OS Desktop is the default desktop of the Breeze::OS Kodiak distribution. It is based on the use of plugins, which can be sent across the web.

A Gallery of images is provided, which give a glimpse of the overall look of the Breeze::OS Desktop.



Breeze::OS Kodiak©® includes our proprietary web enabled desktop, called Breeze::OS Desktop©®. Breeze:OS Kodiak was conceived to serve as a web OS, which would allow every installation to act as an HTTP server.
